Data Sheet and Installation Instructions (MB-63)

Please note that the information below refers to Solar Analytics branded smart monitoring devices. For more information on Wattwatchers branded smart monitoring devices, please check outWattwatchers with Solar Analytics.

The Solar Analytics Billing Hardware Bundle is a package offer that has been designed specifically for applications where pattern approved billing data is required such as Power Purchase Agreements (PPAs), EV charger disaggregation, embedded networks and microgrids.

There are three hardware bundles offered as part of the Solar Analytics billing bundle listed below.

PMC-220: Single Phase Pass Through Bundle (i.e suitable for up to 60A single phase applications)
PMC-340-BA: Three Phase Pass Through Bundle (i.e suitable for up to 100A three phase applications)
PMC-340-BB: Three Phase CT Bundle (i.e suitable for up to 600 A three phase applications)

The installation of our Billing Hardware Bundle requires installers to install, commission and calibrate two separate device devices and is a specialist application.

Please ensure installers are equipped with the correct equipment, hardware and software to enable correct use and ensure you have read the manuals below and check the SLDs by clicking this link.

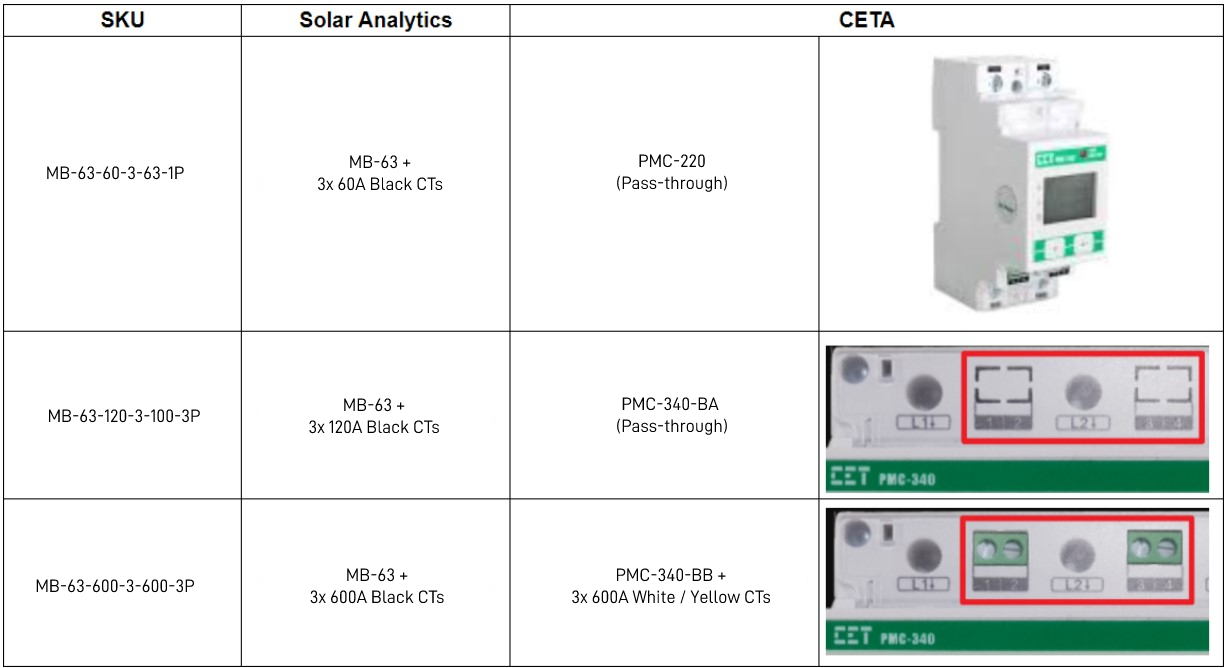

The standard configuration of Solar Analytics NMI bundles are summarised on the table below:

For more detail on the technical specifications, please refer to our Data Sheet attached below.
